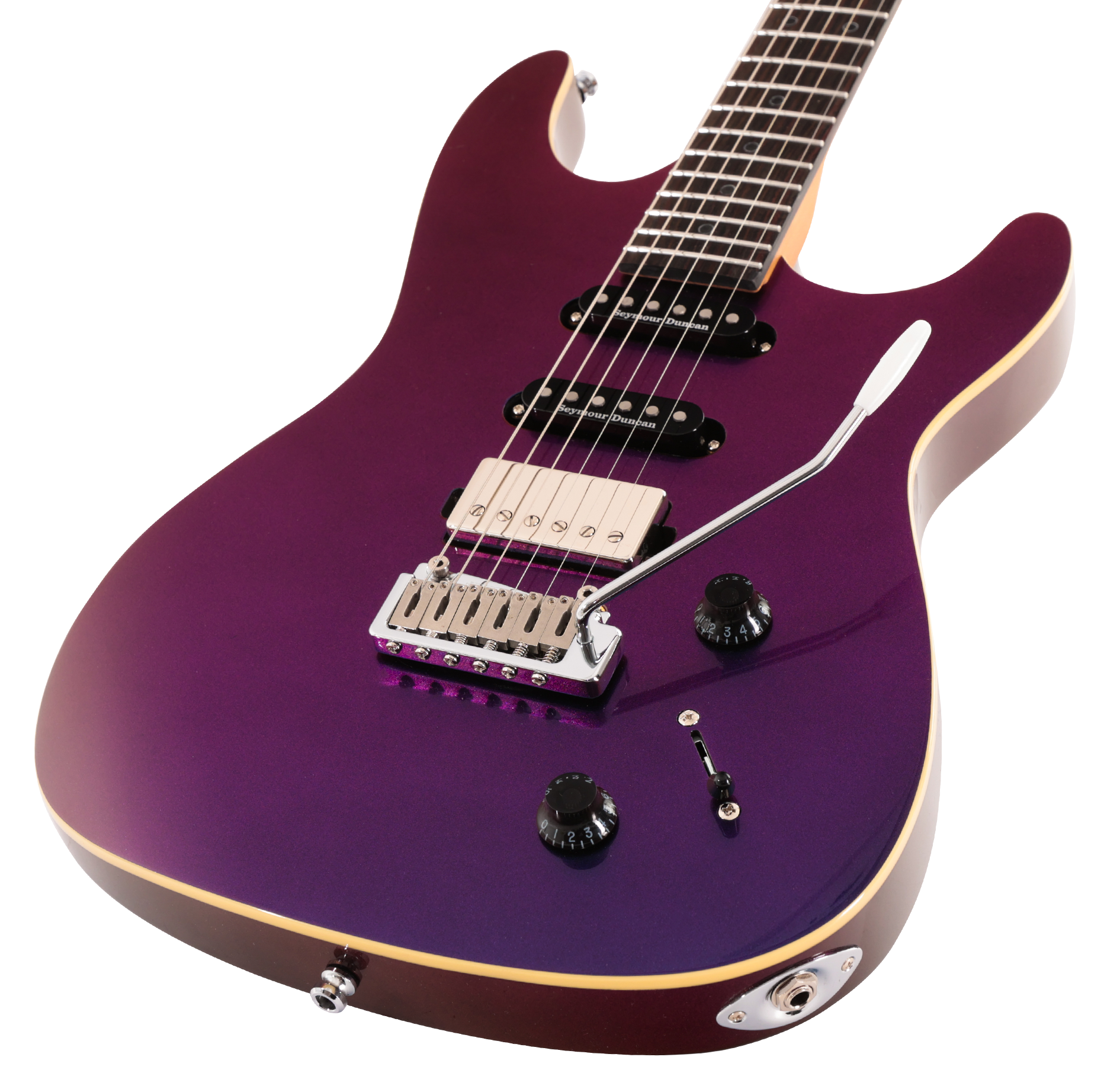

ML1 PRO X
Get ready to lock and load with the Limited Edition Chapman ML1 Pro X – the ultimate weapon in the arsenal of the modern guitarist.
This high-caliber instrument, engineered with a versatile HSS configuration and top-notch features, is a tribute to Chapman's decade-long tradition of crafting battle-ready axes.
Available in sleek metallic gloss finishes - Black, Deep Cherry, and Morpheus Flip, the ML1 Pro X is the culmination of the Chapman anniversary series, echoing the spirit of the original ML1 over a decade ago, it serves as a beacon, reminding us of the birth of a brand that continues to redefine the boundaries of rock.
-
FINISHES Metallic Black, Deep Cherry Metallic, Morpheus Flip
BODY Mahogany Flat Top, Gloss Finish
HEADSTOCK Straight Heritage Headstock
TUNERS Hipshot Grip-Lock Open (18:1 Gearing)
STRING NUT 42mm Graph Tech Black TUSQ XL Nut
NECK Roasted Maple – Medium Colour with Satin Finish
NECK JOINT Bolt-on with Volute
NECK SIZE WIDTH NUT 42mm, 22F 57mmNECK THICKNESS including fret height: 1F 22.5mm 12F 24mm
NECK PROFILE C Shape
TRUSS ROD Dual Action
FRETBOARD Macassar Ebony with Rolled Edges
FRETBOARD RADIUS 350mm (~13.5″)
FRETS 22 Jumbo Stainless Steel Frets
FRET MARKERS Glow-in-the-Dark Side Dots & Donut Inlays
12TH FRET INLAY Donut
SCALE LENGTH 648mm (~25.5”)BRIDGE Wilkinson 2 Point Trem Solid Steel Saddles & Steel Block
STRAP BUTTONS Chapman Strap Locks
STRINGS Ernie Ball Regular Slinky Nickel Wound, 10-46 (.010 / .013 / .017 / .026 / .036 / .046)
-
NECK PICKUP Seymour Duncan Classic Stack MAGNET Alnico V
DC RESISTANCE 8.7k ohms
MIDDLE PICKUP Seymour Duncan Classic Stack MAGNET Alnico V DC RESISTANCE 8.6k ohmsBRIDGE PICKUP Seymour Duncan Trembucker
MAGNET Alnico V
DC RESISTANCE 11.7k ohms
PICKUP SWITCH 5 Way Blade
CONTROLS Neck Volume (500k), Bridge Volume (500k), Master Tone (500k) -
POSITION 1 Bridge Humbucker
POSITION 2 Bridge Humbucker Split &
Middle
POSITION 3 Middle
POSITION 4 Middle & Neck
POSITION 5 Neck
ROASTED MAPLE NECK
The ML1 Pro X’s modern C-shaped roasted maple neck comes equipped with jumbo stainless steel frets, ensuring your playing precision is always on point. Its glow-in-the-dark side inlays and smooth Macassar Ebony fingerboard are like the advanced targeting system of your musical firepower, ready to deliver a deadly performance.
PREMIUM CONSTRUCTION
Featuring a whole suite of high-end appointments from the Wilkinson 2 point trem, jumbo stainless steel frets, super rolled edges, Hipshot Grip-Lock Tuners, a roasted maple neck and for the first time ever on a Chapman pro model fretboard inlays, you can guarantee this Pro Series Chapman guitar has everything you need to get the job done.
SEYMOUR DUNCAN PICKUPS
Encased in its gloss metallic armor, the ML1 Pro X’s mahogany body resonates with the thunderous roar of victory. Fitted with a trio of Seymour Duncan pickups – two ALNICO V “Classic Stack” at the neck and middle, and an “HB Trembucker” at the bridge – this guitar is a one-man army of tone.
